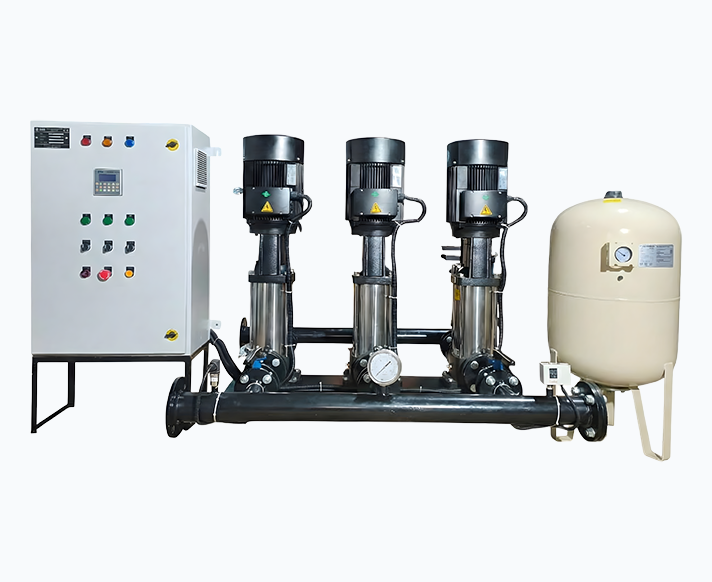

HRL Series Multistage Vertical Pump Booster
The HRL Series is an advanced multi-pump booster system designed for commercial, industrial, and high-rise building applications requiring continuous-duty operation and variable demand management. The system uses PLC-based intelligent control with HMI interface for automatic pump staging and constant pressure maintenance.
Equipped with Variable Frequency Drive (VFD) technology, the HRL Series optimizes pump operation based on water demand, reducing electrical consumption by up to 30% compared to conventional pumping systems. The elimination of overhead tanks further reduces construction cost and improves system efficiency.
Its programmable control architecture allows multiple operating set points, enabling efficient water management for varying consumption patterns while ensuring maximum protection for pumps and motors.
Control Panel & Automation
The Series systems are equipped with intelligent pump controllers integrated with PLC and HMI technology for advanced operational control. Pressure transmitters continuously monitor pipeline pressure and automatically regulate pump operation to maintain constant pressure levels.
The system is mounted on a common skid with suction and discharge manifolds along with standard accessories for reliable long-term operation. Integrated control panels can be mounted separately on-site for flexible installation requirements.
Features
- Intelligent hydro pneumatic pressure boosting system with automatic operation
- PLC-based controller with HMI interface for easy programming and monitoring
- Variable Frequency Drive (VFD) for energy-efficient pump operation
- Automatic cascade control for optimized multi-pump operation
- Mounted on common skid frame with manifolds, valves, and pressure transmitter
- Pre-set and ready-to-use system with programmable pressure management
- Reduces pump cycling and improves pump life using accumulator system
- Eliminates requirement of overhead tanks in high-rise applications
Applications
- Housing colonies, townships, apartments, and high-rise buildings
- Hotels, hospitals, IT parks, schools, and commercial complexes
- Water parks, fountains, golf courses, and irrigation systems
- Firefighting and HVAC applications
- Industrial water supply systems in pharmaceutical, automotive, and textile industries
Related Products

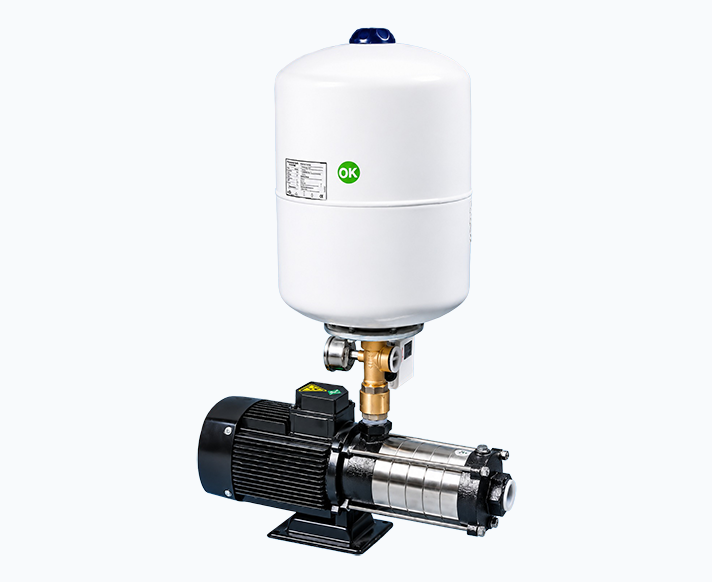

Single Booster Pressure Systems
