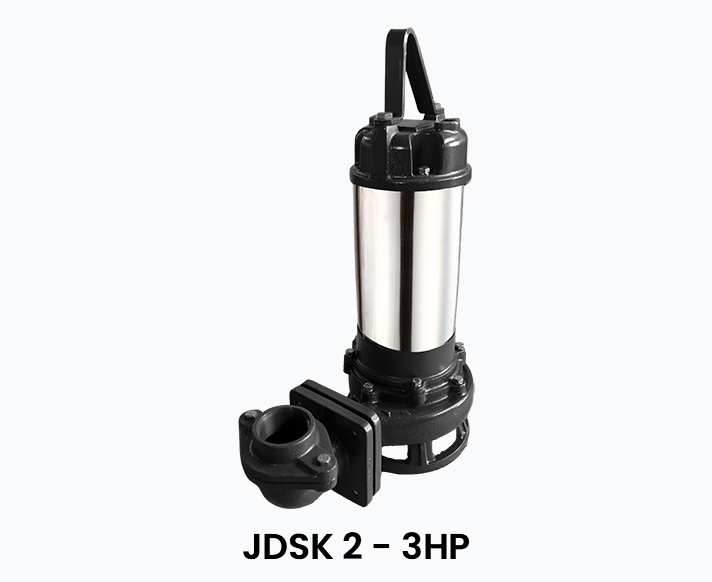

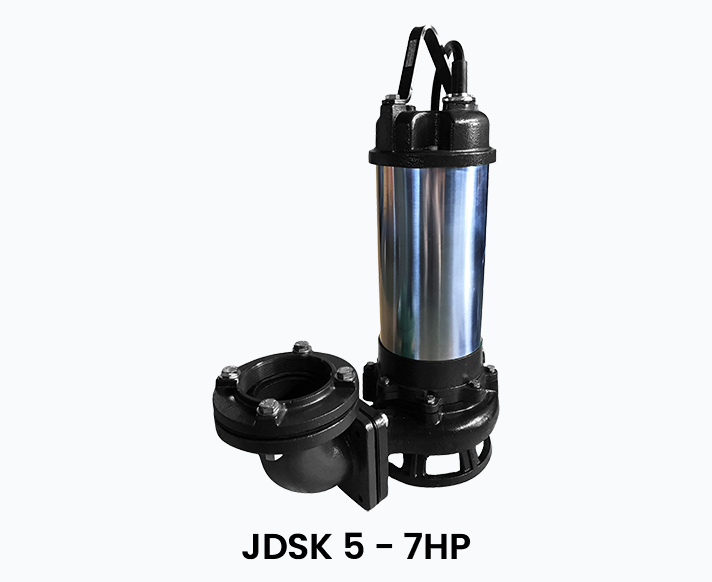

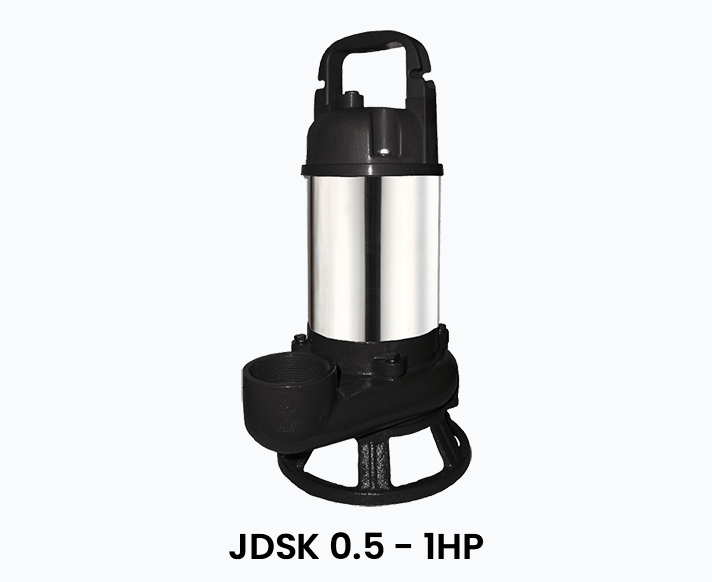

JDSK Series Submersible Sewage Cutter Pumps

The JDSK Series Submersible Sewage Cutter Pump is specifically designed for handling sewage, kitchen waste, wastewater, and suspended solids in residential, commercial, and industrial applications. Its special tungsten edge impeller helps cut soft solids and fibrous materials, reducing clogging while ensuring efficient wastewater transfer.

The pump features a double mechanical seal arrangement for enhanced durability and dependable continuous-duty performance. Manufactured with a Cast Iron body and impeller along with SS304 motor housing, the JDSK Series provides reliable operation under demanding sewage handling conditions.

Available in multiple power ratings, the JDSK Series is suitable for sewage drainage, wastewater treatment, septic tanks, hotel wastewater, and food industry applications.

Features

Special tungsten edge impeller for anti-clogging solids handling
Double mechanical seal for reliable continuous-duty operation
Low-maintenance design for sewage and wastewater applications
Single-phase models available with water level sensor
Compatible with QDC (Quick Discharge Connection) system

Applications

Kitchen, hotel, hospital, and raw sewage wastewater transfer
Food industry and slaughterhouse wastewater handling
Building basement drainage and groundwater dewatering applications
Septic tank, cesspit, and wastewater treatment systems

Performance Range

Flow Range	80 ~ 990 LPM
Head Range	2 ~ 29 meters
Power Ratings	0.37 ~ 5.5 kW (0.5 ~ 7.5 HP)
Liquid Temperature	5°C ~ 45°C
Frequency	50 Hz
MOC	Cast Iron Body & Impeller
Motor Housing	SS304 (Upto 7.5 HP)
Solid Handling Capacity	Up to 28 mm
Standard Cable Length	5 meter (0.5 ~ 3 HP) / 10 meter (5 ~ 7.5 HP)
