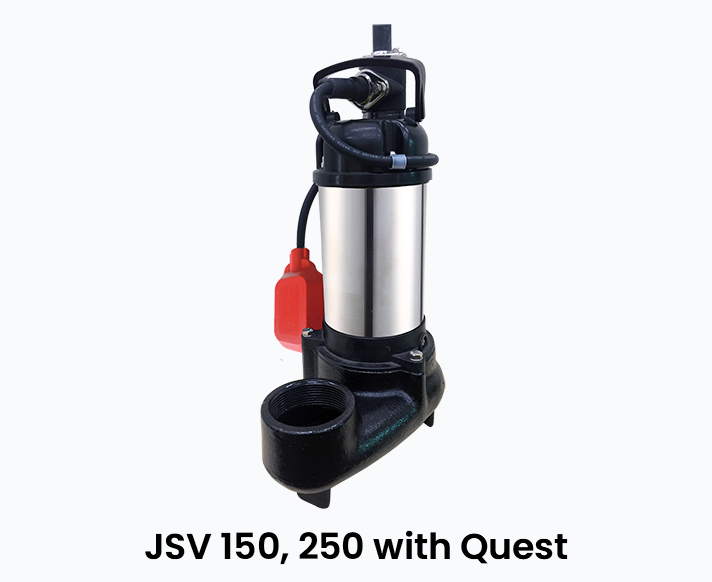

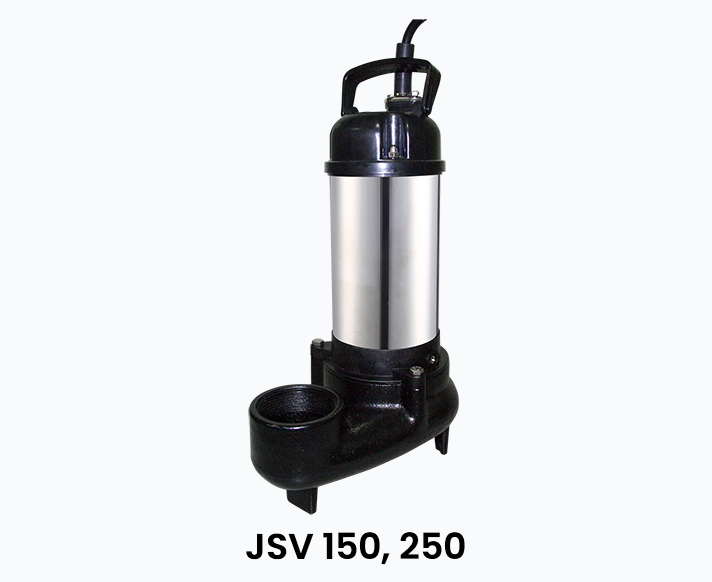

JSV Series Submersible Vortex Sewage Pumps

The JSV Series Submersible Vortex Sewage Pump is specifically designed for handling domestic sewage, hotel wastewater, hospital discharge, and industrial effluents containing suspended solids. Its vortex impeller creates a free-flow pumping action that minimizes clogging while ensuring smooth and reliable wastewater transfer.

The pump features a double mechanical seal arrangement and abrasion-resistant hydraulic design that enhance durability and operational life. Its compact and maintenance-friendly construction makes it suitable for continuous-duty operation in small-scale sewage and wastewater systems.

Available in multiple compact power ratings, the JSV Series provides an economical and reliable solution for low-flow sewage handling applications.

Features

Non-clog vortex impeller for efficient solids handling and minimized abrasive wear
Double mechanical seal for improved durability and motor protection
Compact low-maintenance design for continuous wastewater operation
Single-phase models available with water level sensor
Quest Float Switch (A) and Vertical Float Switch (AG/AM) options available

Applications

Domestic sewage, hotel wastewater, and hospital wastewater handling
Raw sewage transfer, sludge recycle, and effluent transfer applications
Mining pit and trench dewatering applications
Medium concentration wastewater handling in STP and industrial sectors

Performance Range

Flow Range	23 ~ 230 LPM
Head Range	1 ~ 7 meters
Power Ratings	100 ~ 250 Watt (0.125 ~ 0.3 HP)
Liquid Temperature	5°C ~ 45°C
Frequency	50 Hz
MOC	Cast Iron Body & Impeller
Motor Housing	SS304
Solid Handling Capacity	Up to 25 mm
Standard Cable Length	5 meters (0.5 ~ 3HP) / 10 meters (5 ~ 7.5HP)
